Name: Landslide Susceptibility

Display Field: Value

Type: Raster Layer

Geometry Type: null

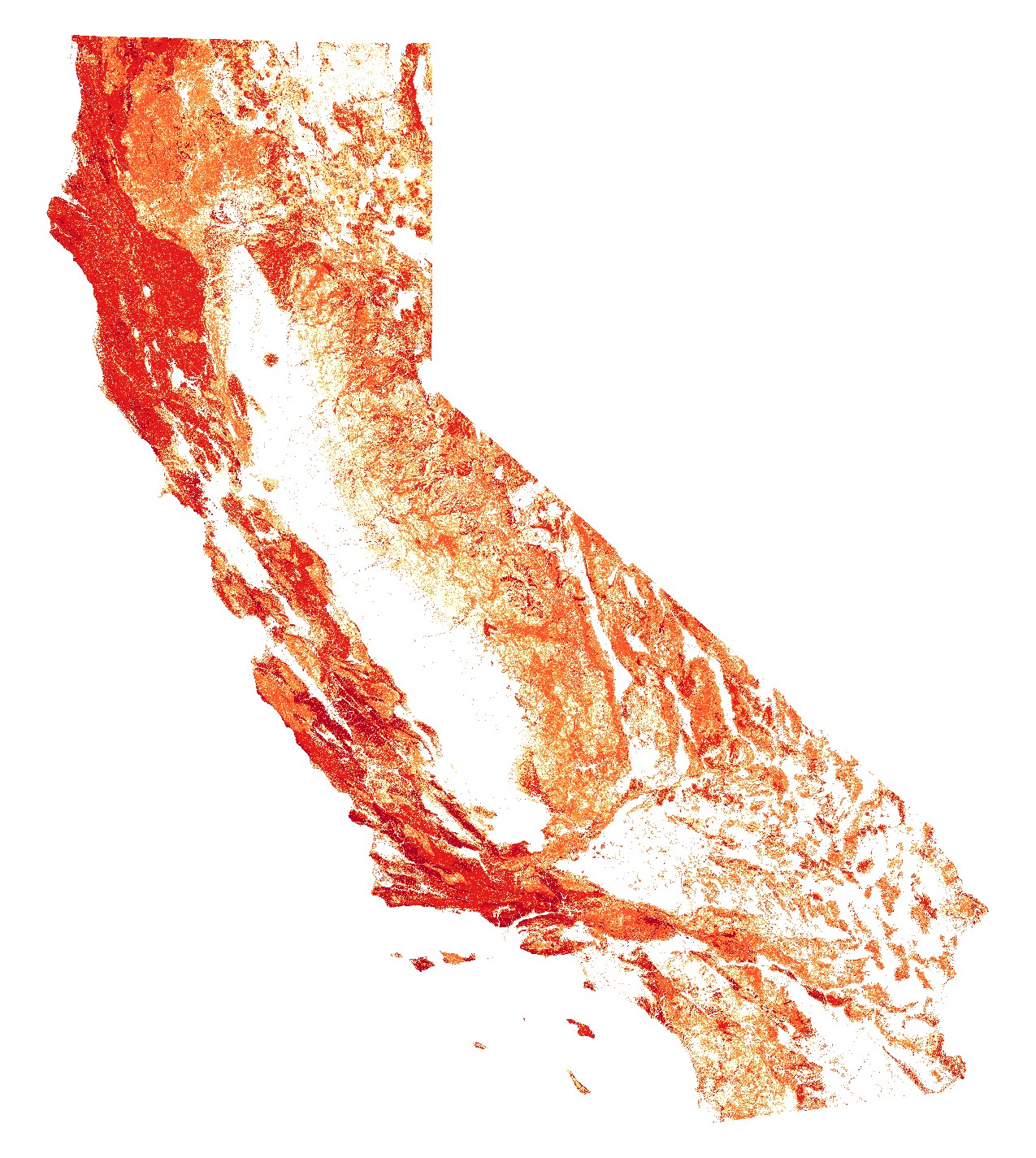

Description: <DIV STYLE="text-align:Left;"><DIV><DIV><P STYLE="margin:0 0 0 0;"><SPAN>The Susceptibility to Deep-Seated Landslides map covers the entire state of California and was originally published in May of 2011 as CGS Map Sheet 58. It made use of several data layers of varying scales and formats, such as Landslide Inventory, Geology, Rock Strength, and Slope. For the statewide analysis of landslide susceptibility, the methodology of Wilson and Keefer (1985) was used in combining the rock strength and slope data layers as implemented by Ponti, el al. (2008) to create classes of landslide susceptibility (0 to 10, low to high). These classes express the generalization that on very low slopes, landslide susceptibility is low even in weak materials, and that landslide susceptibility increases with slope and in weak rocks. Areas where existing landslides have been mapped were assigned to the highest landslide susceptibility class (i.e. 10). </SPAN></P><P STYLE="margin:0 0 0 0;"><SPAN /></P><P STYLE="margin:0 0 0 0;"><SPAN>The landslide susceptibility matrix, based on Rock Strength (RS) and Slope Steepness (SS) in degrees, is described below:</SPAN></P><P STYLE="margin:0 0 0 0;"><SPAN>RS(1) &amp; SS(&lt;3 to 10); RS(2) &amp; SS(&lt;3); RS(3) &amp; SS(&lt;3) = susceptibility 0. </SPAN></P><P STYLE="margin:0 0 0 0;"><SPAN>RS(1) &amp; SS(10 to15) = susceptibility class 3</SPAN></P><P STYLE="margin:0 0 0 0;"><SPAN>RS(2) &amp; SS(3 to10) = susceptibility class 5</SPAN></P><P STYLE="margin:0 0 0 0;"><SPAN>RS(1) &amp; SS(15 to 20) – susceptibility class 6</SPAN></P><P STYLE="margin:0 0 0 0;"><SPAN>RS(1) &amp; SS(20 to 30); RS(3) &amp; SS(3 to 10) = susceptibility class 7</SPAN></P><P STYLE="margin:0 0 0 0;"><SPAN>RS(1) &amp; SS(30 to &gt;40); RS(2) &amp; SS(10 to 15) = susceptibility class 8</SPAN></P><P STYLE="margin:0 0 0 0;"><SPAN>RS(2) &amp; SS(15 to &gt;40); RS(3) &amp; SS(10 to 15) = susceptibility class 9</SPAN></P><P STYLE="margin:0 0 0 0;"><SPAN>RS(3) &amp; SS(15 to &gt;40) = susceptibility class 10</SPAN></P><P STYLE="margin:0 0 0 0;"><SPAN /></P></DIV></DIV></DIV>

Service Item Id: b2d55a9d411246b9a966517fbc47c48d

Copyright Text: California Geological Survey

Default Visibility: false

MaxRecordCount: 0

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0

Max Scale: 0

Supports Advanced Queries: false

Supports Statistics: false

Has Labels: false

Can Modify Layer: false

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 6456668.948691565
YMin: 2043943.794244313
XMax: 6593799.257578126
YMax: 2129869.5956535796
Spatial Reference: 102645  (2229)

Drawing Info:

N/A

Advanced Query Capabilities:

Supports Statistics: false
Supports OrderBy: false
Supports Distinct: false
Supports Pagination: false
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: false
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeNone

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• Value ( type: esriFieldTypeInteger, alias: Value )
• Count_ ( type: esriFieldTypeDouble, alias: Count_ )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

  Iteminfo   Thumbnail   Metadata
